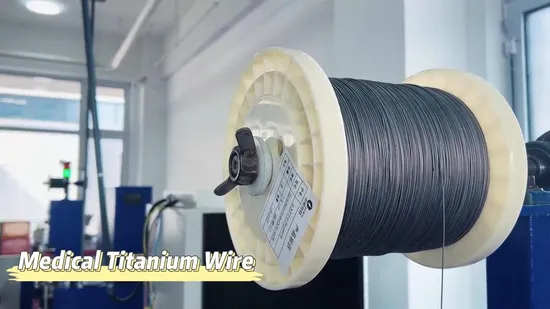

Medical Implant Grade Gr1/Gr2 Titanium Wire in Coils or Spools
Overview .lc-a-img { position: relative; width: 100%; height: 100%; object-fit: contain; overflow: hidden;}.lc-a-img .im
Description
- Overview
- Product Description
- Specification
- Application
- Certifications
- Production and Quality Control
- Product Category
- Company Profile
- FAQ
Basic Info.
| Model NO. | BKTW-M |
| Technique | Hot Rolled |
| Grade | Gr1, Gr2, Gr3, Gr4 |
| Shape | Round |
| MOQ | 1kg |
| Standard | ASTM, ISO, AMS, JIS, DIN |
| Surface | Bright |
| Diameter Tolerance | ±0.005mm |
| Supply Form | Spool Wound |
| Transport Package | Wooden Case |
| Specification | 0.1~1.0mm |
| Trademark | Bokang |
| Origin | Changzhou, China |
| HS Code | 8108901090 |
| Production Capacity | 200tons/Year |
Product Description
Product Description
Fully Independent Processing: In-house production ensures full control over quality and customization.
Excellent Formability: Outstanding plasticity allows for easy shaping into complex medical components.
High Stability & Consistency: Reliable performance in batch-to-batch production for precision medical use.
Uniform Composition: Chemically consistent material throughout, ensuring predictable results.
Customizable Strength: Mechanical properties can be tailored to meet specific surgical or medical device requirements.Titanium Wire Material Characteristics
High-Purity Raw Material: Precision smelted from sponge titanium with 99.9% purity, ensuring implant-grade quality.
Superior Biocompatibility: Ideal for long-term implantation with excellent tissue compatibility and no adverse reaction.
Strong Plasticity: Excellent ductility and workability make it suitable for coiling, bending, and cold forming.
High Surface Smoothness: Clean and bright finish, reducing friction and enhancing surgical precision.
Tangle-Free Winding: Professionally wound coils ensure uniform wire feeding, minimizing process interruption.
| Grade | GR1,GR2, GR3, GR4 |
| Standard | ASTM F67,ISO5832-2,GB/T13810-2017,QB/ZHSM-AX |
| Diameter(mm) | φ0.2-1.0 |
| Common Specifications ( mm) | φ0.20, φ0.21, φ0.23, φ0.28, φ0.3, φ0.6, φ0.8, φ1.0 |
| Diameter Tolerance | ±0.005mm |
| Supply Form | Spool Wound |
| Surface Finish | Bright |
| Element | Composition,% (mass/mass) | |||
| Grade 1 UNS R50250 | Grade 2 UNS R50400 | Grade 3 UNS R50550 | Grade 4 UNS R50700 | |
| Nitrogen, max | 0.03 | 0.03 | 0.05 | 0.05 |
| Carbon, max | 0.08 | 0.08 | 0.08 | 0.08 |
| Hydrogen, max | 0.015 | 0.015 | 0.015 | 0.015 |
| Iron, max | 0.2 | 0.3 | 0.3 | 0.5 |
| Oxygen, max | 0.18 | 0.25 | 0.35 | 0.4 |
| Titanium | balance | balance | balance | balance |
| Grade | Tensile Strength, min | Yield Strength, A (0.2 % Offset), min | Elongation in 4D, min, % | Reduction of Area, min, %C | ||
| KSI | MPA | KSI | MPA | |||
| 1 | 35 | 240 | 25 | 170 | 24 | 30 |
| 2 | 50 | 345 | 40 | 275 | 20 | 30 |
| 3 | 65 | 450 | 55 | 380 | 18 | 30 |
| 4 | 80 | 550 | 70 | 483 | 15 | 25 |
Titanium pins for surgical staplers – Ensures secure and stable wound closure during minimally invasive and open surgeries.
Titanium clips for surgical instruments – Used for vessel ligation, tissue fixation, and hemostasis, compatible with clip appliers in general and laparoscopic surgeries.Certifications
A: We are a direct manufacturer with 18+ years of experience in titanium production.Q: Do you provide free samples?
A: Yes, we offer free samples, but customers need to cover the shipping cost.
Q: What is the minimum order quantity (MOQ)?
A: 1 kg. We maintain a 20-ton monthly production capacity for titanium rods and wires, ensuring sufficient stock for standard medical and aerospace materials.
Q: What titanium products do you offer?
A: Our product range includes pure titanium, titanium alloys, titanium rods, titanium bars, wires, discs, sheets, plates, nitinol alloys, and more.
Q: What are your payment terms?
A: Payment terms vary based on the transaction type (FOB, CIF, CNF, etc.).
For mass production, we require 30% deposit before production and 70% balance against shipping documents. We accept T/T and L/C payments.
Q: What industries do your products serve?
A: Our titanium and nitinol alloys are widely used in medical, aerospace, and industrial applications.
Q: How can I get a price quote?
A: To provide an accurate quote, please provide the following details:
1 Product Name
2 Standard
3 Material Grade (Chemical Composition)
4 Dimensions
5 Quantity
Q: Do you offer custom manufacturing?
A: Yes! We provide customized titanium products based on customer drawings or samples.
Q: How do you ensure product quality?
A: We implement strict quality control at every stage of production, using advanced testing equipment to meet customer and international standards.
Q: What are your shipping options?
A: We ship via sea or air, depending on customer requirements.
Contact us today for more details or a custom quote!
